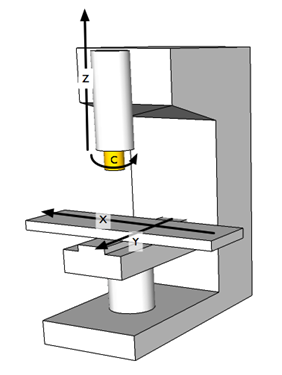

This is a simple machine tool with a vertical spindle and a table that can move in two dimensions. The modeling always starts with the Linear Z axis that is aligned with the primary spindle. The X axis is defined as the longest axis perpendicular to the Z axis. The spindle is now defined as a Rotary C axis that rotates around the Z axis.
The right hand rule applies when naming the axes and defining positive motion and rotation. In this case the Rotary axis only operates as a spindle, so it will have a constant valued DataItem called RotaryMode. This machine is only capable of executing a single program and therefore only capable of a single path. The following XML describes a simple configuration for this machine.
<?xml version="1.0" encoding="UTF-8"?>
<MTConnectDevices ns="urn:mtconnect.com:MTConnectDevices:1.1"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:mtconnect.com:MTConnectDevices:1.1
MTConnectDevices.xsd">
<Header bufferSize="130000" instanceId="1" creationTime="2009-11-
13T02:31:40" sender="local" version="1.1"/>
<Devices>
<Device id="d1" uuid="HM1" name="HMC_3Axis">
<Description>3 Axis Mill</Description>
<Components>
<Axes id="a" name="base">
<Components>
<Linear id="y" name="Y">
<DataItems>
<DataItem type="POSITION" subType="ACTUAL" id="yp"
category="SAMPLE" name="Yact" units="MILLIMETER"
nativeUnits="MILLIMETER" coordinateSystem="MACHINE"/>
</DataItems>
</Linear>
<Linear id="x" name="X">
<DataItems>
<DataItem type="POSITION" subType="ACTUAL" id="xp"
category="SAMPLE" name="Xact" units="MILLIMETER"
nativeUnits="MILLIMETER" coordinateSystem="MACHINE"/>
</DataItems>
</Linear>
<Linear id="z" name="Z">
<DataItems>
<DataItem type="POSITION" id="zp" category="SAMPLE" name="Zact"
subType="ACTUAL" units="MILLIMETER" nativeUnits="MILLIMETER"
coordinateSystem="MACHINE"/>
</DataItems>
</Linear>
<Rotary id="c" name="C">
<DataItems>
<DataItem type="ROTARY_VELOCITY" id="cspd" category="SAMPLE"
name="Sspeed" subType="ACTUAL" units="REVOLUTION/MINUTE"
nativeUnits="REVOLUTION/MINUTE"/>
<DataItem type=" ROTARY_VELOCITY " id="cso" category="SAMPLE"
name="Sovr" subType="OVERRIDE" units="PERCENT"
nativeUnits="PERCENT"/>
<DataItem type="ROTARY_MODE" id="rf" category="EVENT"
name="rfunc">
<Constraints>
<Value>SPINDLE</Value>
</Constraints>
</DataItem>
</DataItems>
</Rotary>
</Components>
</Axes>
<Controller id="cont" name="controller">
<Components>
<Path id="path" name="path">
<DataItems>
<DataItem type="PROGRAM" id="pgm" category="EVENT"
name="program"/>
<DataItem type="BLOCK" id="blk" category="EVENT" name="block"/>
<DataItem type="LINE" id="ln" category="EVENT" name="line"/>
<DataItem type="PATH_FEEDRATE" id="pf" category="SAMPLE"
name="Fact" units="MILLIMETER/SECOND"
nativeUnits="FOOT/MINUTE" subType="ACTUAL"/>
<DataItem type="PATH_FEEDRATE" id="pfo" category="SAMPLE"
name="Fovr" units="PERCENT" nativeUnits="PERCENT"
subType="OVERRIDE"/>
<DataItem type="PATH_POSITION" id="pp" category="SAMPLE"
name="Ppos" units="MILLIMETER_3D" nativeUnits="FOOT_3D"
coordinateSystem="WORK"/>
<DataItem type="EXECUTION" id="exec" category="EVENT"
name="execution"/>
<DataItem type="CONTROLLER_MODE" id="cm" category="EVENT"
name="mode"/>
</DataItems>
</Path>
</Components>
</Controller>
</Components>
</Device>
</Devices>
</MTConnectDevices>
